Cisco ASR 1000-X is designed for high-end enterprise, data center, service provider edging network
Cisco Asr 1001 License Plate Shin Koihime Musou Ps2 Iso R Kelly I Wish Instrumental Mp3 Download Baumgarten Aesthetics Pdf To Word Finacle Core Banking software, free download Download Game Barbie As Rapunzel A Creative Adventure Free Download Games Rpg 320x240 Extreme Injector V3.exe Far Cry 4.
in order to handle explosive traffic through the network. It supports only software redundancy, and it
Cisco Asr 1001 Licensing
is based on a Quad-core 2.13GHz processor with 4GB memory, 8GB flash memory, 1 SPA bay, SPA
Check ASR 1001-X LICENSE price from the latest Cisco price list 2020. Cisco ASR 1000 Series. Cisco ASR 1001-X. Cisco ASR 1000 Series 2.5-Gbps ESP (default) Upgradable through a software-activated feature license to 5, 10, or 20 Gbps. Share the same control memory on route processor. SIPs and Ethernet line cards. Integrated in chassis; not upgradable.
interface processor 10 (SIP10).
Cisco Asr 1001 Rommon Commands

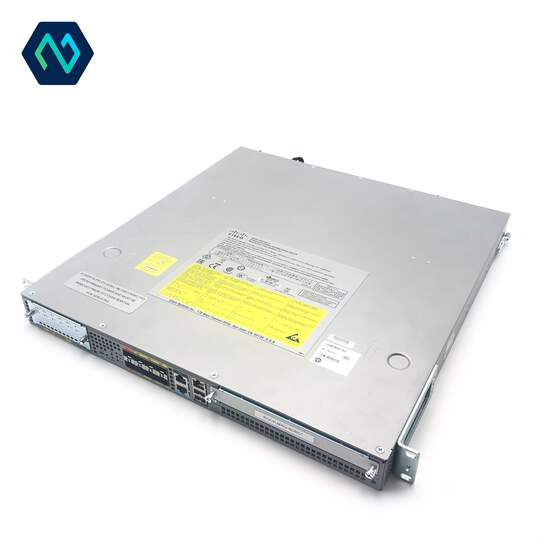

This ASR1001-X is similar with the ASR1001-X=. The ASR1001-X= is a spare one.
Specification
ASR1001-X Specifications | |
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. | Height: 1.71 in. (43.43 mm) Width: 17.3 in. (439.42 mm) Depth: 18.17 in. (461.5 mm) Weight: ● 25 lb (11.35 kg) fully loaded Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated. |
Default memory | 8-GB DRAM shared across route processor, ESP, and SIP |
Number of SIPs or Ethernet line cards supported | Integrated in chassis |
Shared port adapters | 1 single-height SPA slot |
Ethernet port adapters | N/A |
Cisco ASR 1000 Series ESP | Integrated in chassis |
Route processor | Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor |
Redundancy | Software: Yes |
Built-in Gigabit Ethernet ports | Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports |
Built-in 10 Gigabit Ethernet port | Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
Network interface module | Yes |
Cisco ASR 1000 Series | Cisco ASR 1001-X |
ESP support | Cisco ASR 1000 Series 2.5-Gbps ESP (default) Upgradable through a software-activated feature license to 5, 10, or 20 Gbps |
ESP bandwidth | 2.5 to 20 Gbps |
ESP memory | Share the same control memory on route processor |
SIPs and Ethernet line cards | Integrated in chassis; not upgradable |
Embedded hardware-based encryption | Yes: Up to 8-Gbps crypto support throughput |
Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.12.0 |
Rack-mounting | Yes: 19-inch |
Wall-mounting | No |
External USB flash memory | 1-GB USB flash-memory support |
Redundant power supply | Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported. |
Power input | Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72V; 48V nominal) |
Power consumption | ● Maximum (DC): 242W ● Maximum (AC): 250W ● Maximum (out): 250W |
Airflow | Front-to-back |
Operating temperature (nominal) | 32 to 104°F |
Operating temperature (short-term) | 32 to 122°F |
Operating humidity (nominal) (relative humidity) | 10 to 85% |
Operating humidity (short-term) | 5 to 90% |
Storage temperature | -40 to 150°F (-40 to 70°C) |
Storage humidity (relative humidity) | 5 to 95% |
Operating altitude | -500 to 10,000 feet |
Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 (in progress) |
EMC standards | ● FCC 47 CFR Part 15 Class A ● VCCI Class A ● AS/NSZ Class A ● ICES-003 Class A ● EN55022/CISPR 22 Information Technology Equipment (Emissions) ● EN55024/CISPR 24 Information Technology Equipment (Immunity) ● EN300 386 Telecommunications Network Equipment ● (EMC) ● EN50082-1/EN61000-6-1 Generic Immunity Standard |
Safety Standard | UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
Cisco ASR 1000 Series Router ASR1001-X= is sealed in cisco original box. We will also pack
ASR1001-X= with second box before shipping.
Our products will be send via FedEx,DHL,TNT,UPS,EMS and so on.but the buyer is responsible for
customs clearance and pay tariff when the product arrived destination country.
Shipping Methods | |
2-4 business days. | |
2-4 business days | |
2-4 business days | |
5-7 business days. | |
Asr 1001 Datasheet
Payment Method
T/T,Western Union, HSBC and Money Gram will be accept.Faster payment will help you to get the
items earlier.
Cisco ASR 1000 Series Aggregation Services Routers provide a Software Defined WAN platform that aggregates multiple WAN connections and network services including encryption and traffic management, and forward them across WAN connections at line speeds from 2.5 to 200 Gbps. The routers contain both hardware and software redundancy in an industry-leading high-availability design.
The latest additions to the Cisco ASR 1000 Series are the Cisco ASR 1002-HX Router and the Cisco ASR 1001-HX Router. Both new routers support up to 100 Gbps in a 2-Rack-Unit (2RU) and 60 Gbps in a 1-Rack-Unit (1RU) form factor, respectively. The ASR 1002-HX has 8 built-in 10 Gigabit Ethernet (GE) ports and 8 1 GE ports, with the Ethernet Port Adapter (EPA) slot for expansion. The ASR 1001-HX has 4 built-in 10 GE ports, 8 1 GE ports, and 4 configurable 10 GE or 1 GE ports. The Cisco ASR 1000 Series Route Processor 3 is the newest addition to the modular control plane engines in the Cisco ASR 1000 Series. The Route Processor 3 adds more options for higher performance, memory, and storage to the ASR 1000 Series.
The Cisco ASR 1000 Series supports Cisco IOS XE Software, a modular operating system with modular packaging, feature velocity, and powerful resiliency. The Cisco ASR 1000 Series Embedded Services Processors (ESPs), which are based on Cisco Flow Processor technology, accelerate many advanced features such as crypto-based access security; Network Address Translation (NAT), thread defense with Cisco Zone-Based Firewall (ZBFW), Deep Packet Inspection (DPI), Cisco Unified Border Element (CUBE), and a diverse set of Data-Center-Interconnect (DCI) features. These services are implemented in Cisco IOS XE Software without the need for additional hardware support.
Cisco ASR 1000 Series routers sit at the edge of your enterprise data center or large office connecting to the WAN, as well as in service provider Points Of Presence (POPs). The Cisco ASR 1000 Series will benefit the following types of customers:
- Enterprises experiencing explosive network traffic as mobility, cloud networking, and video and collaboration usage increase: Cisco ASRs consolidate these various traffic streams and apply traffic management and redundancy properties to them to maintain consistent performance among enterprise sites and cloud locations.
- Network service providers needing to deliver high-performance services, such as DCI and branch-office server aggregation, to business customers: Service providers can also use the multiservice routers to deploy hosted and managed services to business and multimedia services to residential customers.
- Existing Cisco 7200 Series Router (end-of-sale) customers looking for simple migration to a new multiservice platform that delivers greater performance with the same design.
Cisco Asr 1001 License Plate Frame
Features and Benefits ASR 1000
The Cisco ASR 1000 Series Routers carry a modular yet integrated design, so network operators can increase their network capacity and services without a hardware upgrade. With flexibility in the number of connections, speed maximums, and price, you don’t have to under- or overprovision for any network location.
Alternatively, you also have the option to buy “-X” and “-HX” models, so you can increase throughput by simply purchasing upgrade licenses as you grow to increase your network speed dynamically.
Cisco Software-Defined WAN
Cisco SD-WAN capability can be enabled on the Cisco ASR 1000 series platforms with IOS-XE. Cisco SD-WAN offers an entirely new way to manage and operate your WAN infrastructure. Cisco SD-WAN is a cloud delivered architecture that offers secure, flexible and rich services with the following key benefits:
- Better user experience: The ability to deploy applications in minutes, on any platform, with a consistent user experience. Deliver predictable performance for applications residing in the data center or in the cloud.
- Greater agility: Faster, easier deployment and operation of your WAN, and get faster performance using less bandwidth. Add new revenue generating services in minutes not months.
- Advanced threat protection: Securely connect your users to applications in minutes and protect your data from the WAN edge to the cloud. Secure segmentation for critical assets and multi-layer, robust security that encrypts all data.
SD-WAN Integrated Security
In order to efficiently connect to multiple cloud infrastructures many enterprise customers want to build an SD-WAN infrastructure that uses Direct Internet Access (DIA). This can save costs and reduce complexity by reducing WAN traffic backhauled to your data centers; however connecting branches directly to the internet without the right security controls exposes your network to threats and vulnerabilities.
With Cisco SD-WAN and the ASR 1000 series platforms, you have integrated security built-right-in for branch DIA security with these integrated security capabilities:
- Application aware enterprise firewall
- DNS layer enforcement (Umbrella)
